StimPlan Version 7.00

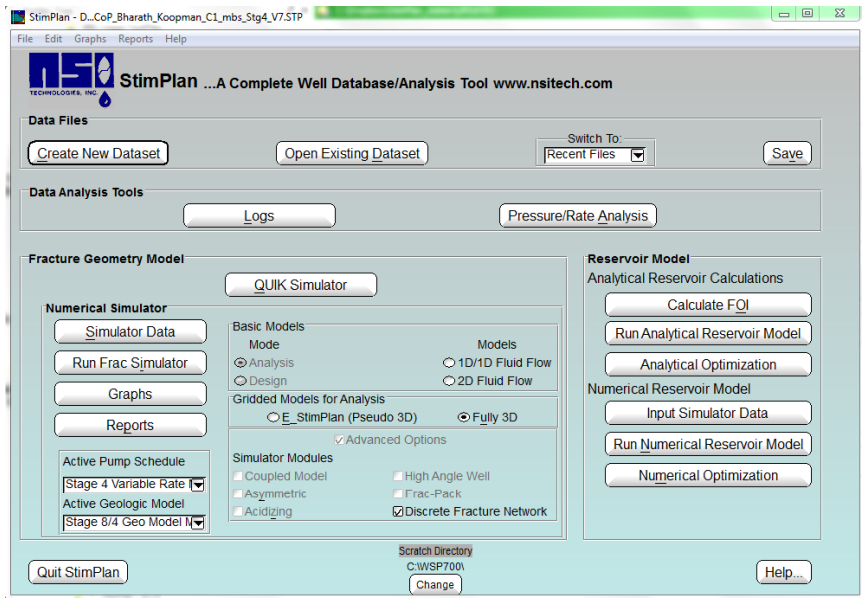

StimPlan Version 7
  • Help System – Greatly expanded use of “Help Pop-Ups” for individual subjects. These are also being expanded to include “Hydraulic Fracturing Help/Tips” along with software information(as seen below).
    Hydraulic Fracturing Help
    This part of a totally revised/expanded “Help System” using a more standard “Windows style’ help system (as seen below).
    Stimplan A Petroleum Engineers Tool Kit
  • Database Files – Further expanded fluid and proppant database files. Added new “Pipe Friction” data base files.

Analysis/Logs Modules

  • Analysis Plot Tips Added “usage tips” to many Analysis Plots as seen below for Step-Down Test. Further expanded fluid and proppant database files. Added new “Pipe Friction” data base files. As soon as analysis begins, the “tips” disappear.
  • Analysis Plot
  • Decline Test Summary Table – In the decline test analysis, a “Summary Results Table” has been added to the √Time, ‘G’, and “G*dP/dG” Plots as seen below.
    Summary Results Table
    The “Final Value” is a User Input, and this is the value carried forward to further analysis.

E-StimPlan

  • 64-bit – The major change for E-StimPlan & E-StimPlan 3D is the move to 64-bit, multi-core parallel processing.This greatly improves execution speed for multi-core processors, or for multi-chip work stations. In some instances, execution is speeded up by a factor of 3X or 4X.
  • Run-Time Dialog – Enhanced “run-time” dialog for setting/controlling solution grid for E-StimPlan & E-StimPlan 3D simulations.
